Multi Blanking Machine (MBM)
Our product lineup includes three variants: Single Head, Twin Head, and our premium Rotating Head model. Each is engineered for specific applications, with the Twin Head offering unmatched versatility by processing two distinct designs simultaneously from one sheet.
The Rotating Head incorporates a proprietary “frame & pin plate rotating mechanism” uniquely enabling rotation for nested designsーan innovation found nowhere else in the industry. Every machine is custom-built to order in-house, guaranteeing exceptional quality and seamless adaptation to your production demands and operational conditions.
Download Catalog
MBM RH 540/540H
By Rotating the material frame and pin insertion mechanisms by 90 or 180 degrees, It is possible to accommodate impositions and nesting in the space of a single-head machine to save valuable space on the factory floor.
※540H：includes product conveyor system
Max Blanking Size(mm)：540×540
Max Sheet Size(mm)：1100×800
Material Movement System
After loading the sheets onto the machine, they will automatically slide into position for blanking according to the parameters set during the initial job setup. The frame rotation is also automated, allowing for the blanking of nested patterns in a single pass.
Material Movement System
After loading the sheets onto the machine, they will automatically slide into position for blanking according to the parameters set during the initial job setup. The frame rotation is also automated, allowing for the blanking of nested patterns in a single pass.
Arrange Pins
By simply arranging the pins, the MBM can blank a variety of product shapes and sizes.
Safety Sensors
The sensors on the left and right will automatically stop the machine if they are blocked, and will resume after the obstacle is cleared.

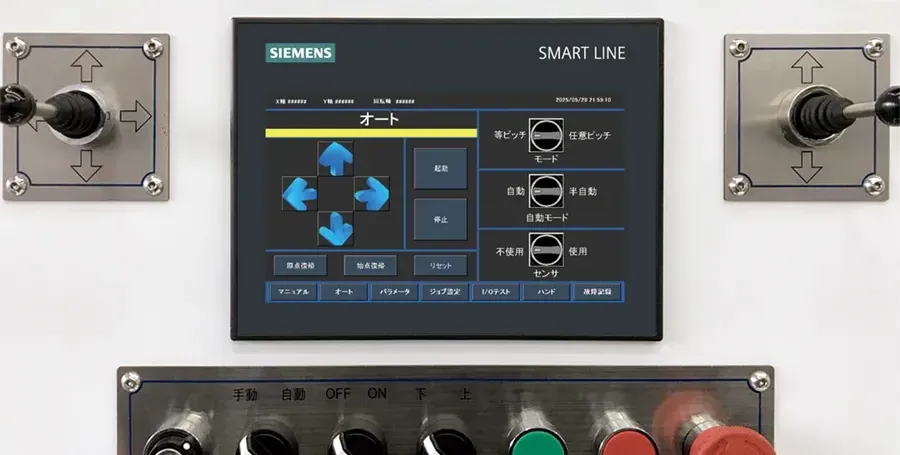

MBM Interface
The easy-to-understand interface and control bar increase efficiency through controllability.
Count Figures
3months
for ROI
1
Operator
90
Installations in the world
2days
for training
Movie
MBM Other Lineup
MBM SH540
A single-head model for blanking straight-type, fixture-free designs. The machine is easy to operate.
MBM TH540
A twin-head model suited for blanking designs with nesting and fixtures, and for designs needing setups with different patterns. Its strong point is its flexibility to accommodate various types of designs.
※SH540/TH540
Max Blanking Size(mm)：540×410
Max Sheet Size(mm)：1100×800
