About MBM
The Multi Blanking Machine series is a compact blanking system optimized for small-lot production of items like packaging, cards, and backing sheets.
We offer a range of options for the MBM to streamline pre- and post-blanking processes and boost operational efficiency. Beyond the listed options, we can provide custom developments tailored to your specific needs.
For more details, please get in touch with us via the Contact form.
Download Catalog
MBM New Customization Option

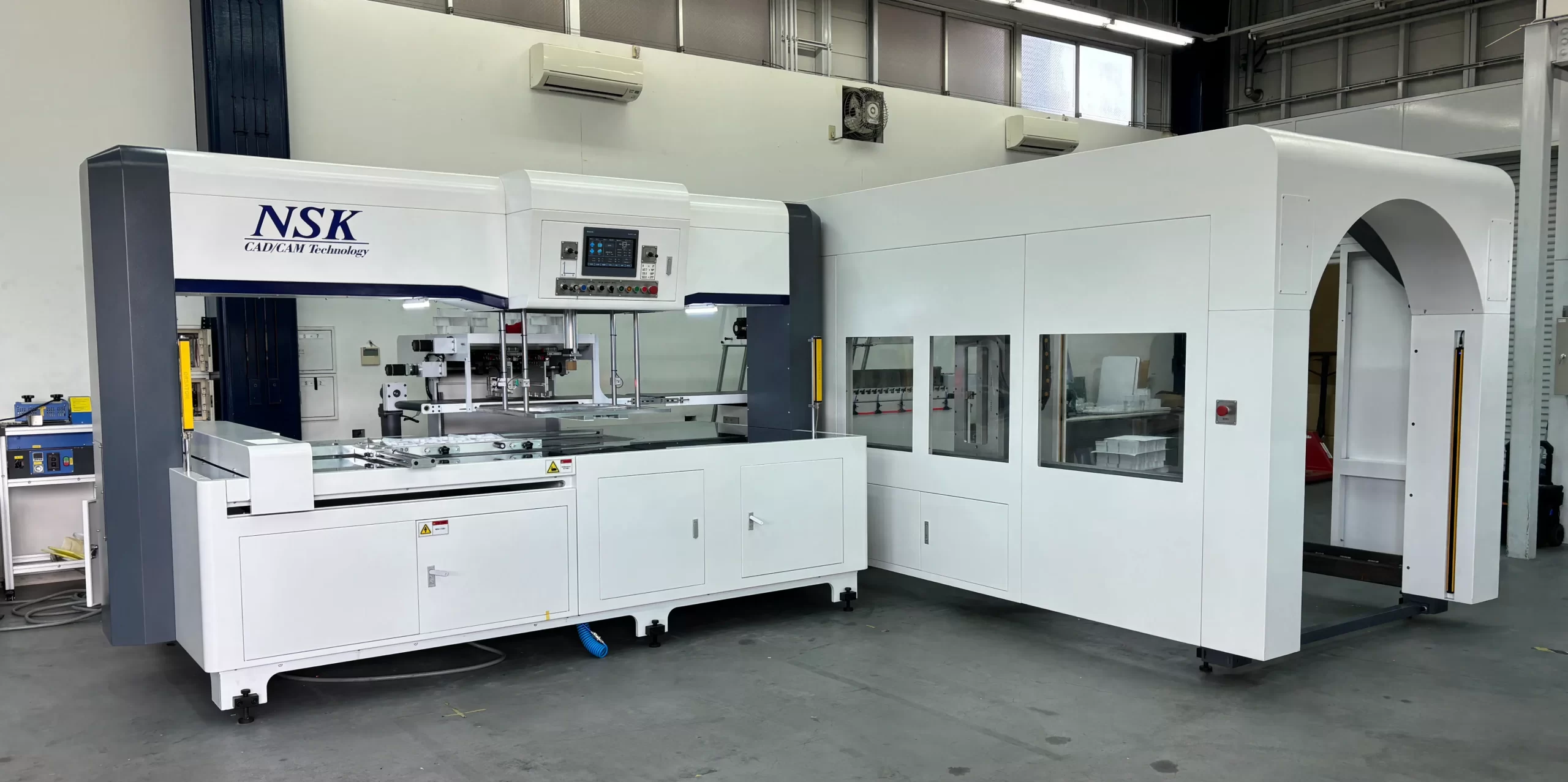

Automatic Palletizing System

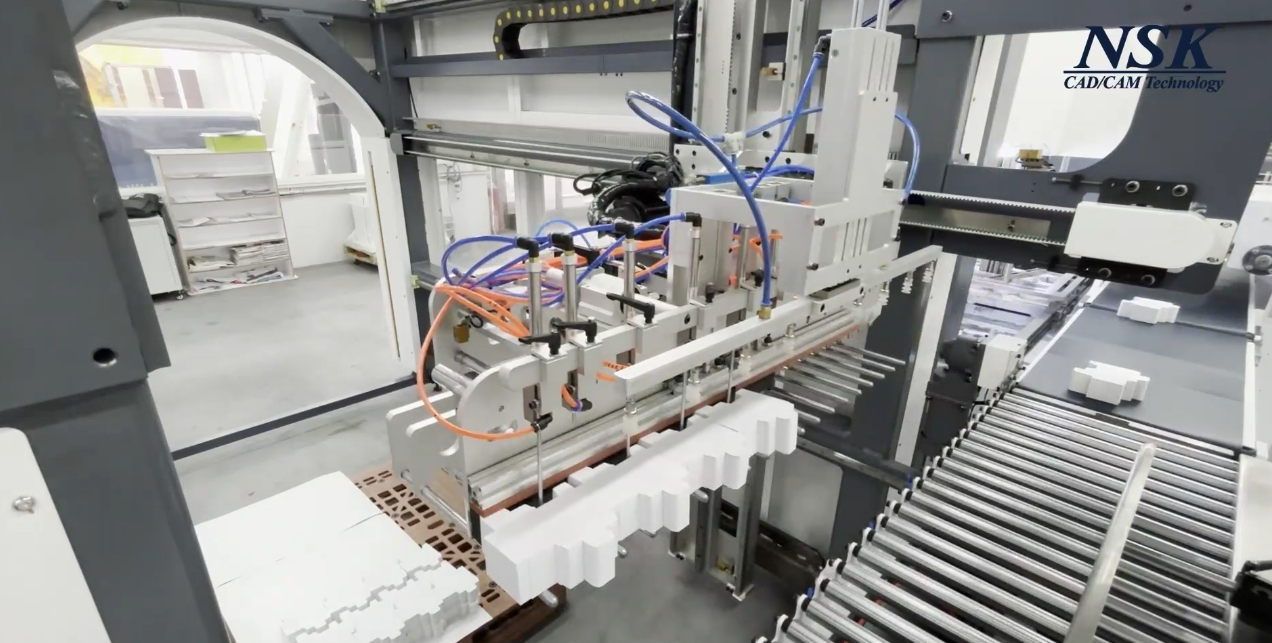

When equipped with an optional hand system, the blanks will be picked by a robotic gripper and transffered to the conveyor for final collection.
Minimize Labor
Maximize Output
When a full row of blanks is formed in the layout, they will be palletized together and stacked onto the pallet by the robotic arm.
With just one operator, the workflow is completed, achieving labor savings and higher efficiency by reducing stripping work.
Maximize Output, Minimize Labor
When a full row of blanks is formed in the layout, they will be palletized together and stacked onto the pallet by the robotic arm.
With just one operator, the workflow is completed, achieving labor savings and higher efficiency by reducing stripping work.
Full Automation
From blanking to palletizing, the entire process can be fully automated without manual handling.

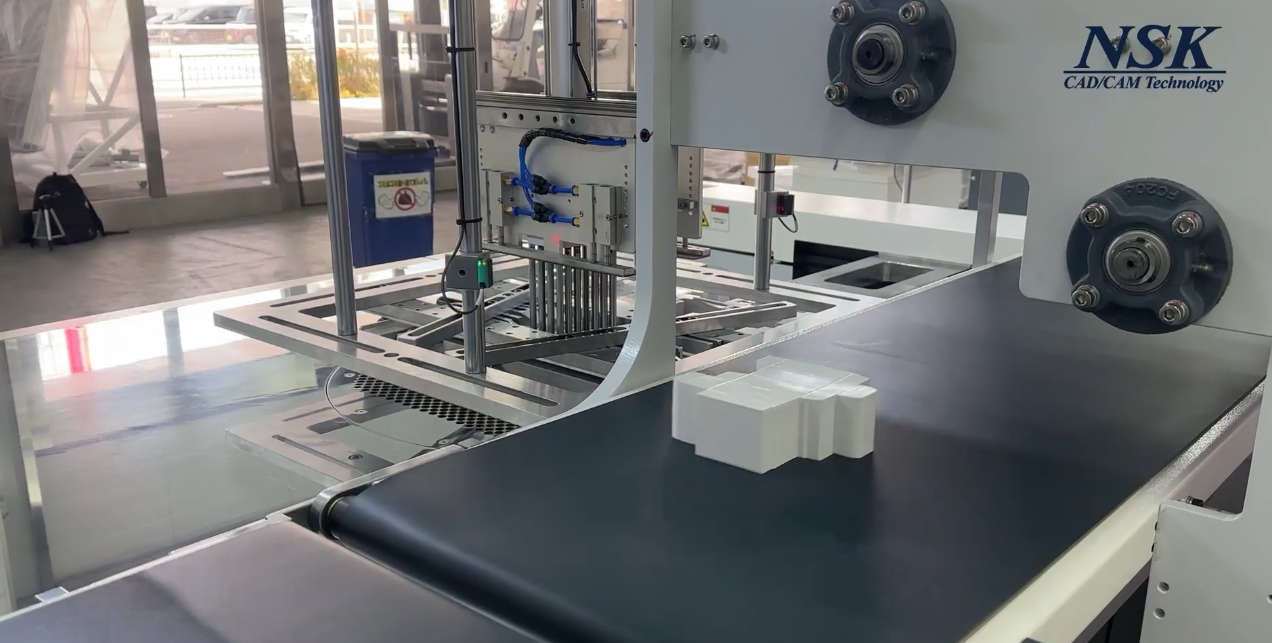

Automated conveyor system
The blanks will be picked by a robotic gripper and transffered to the conveyor for final collection.

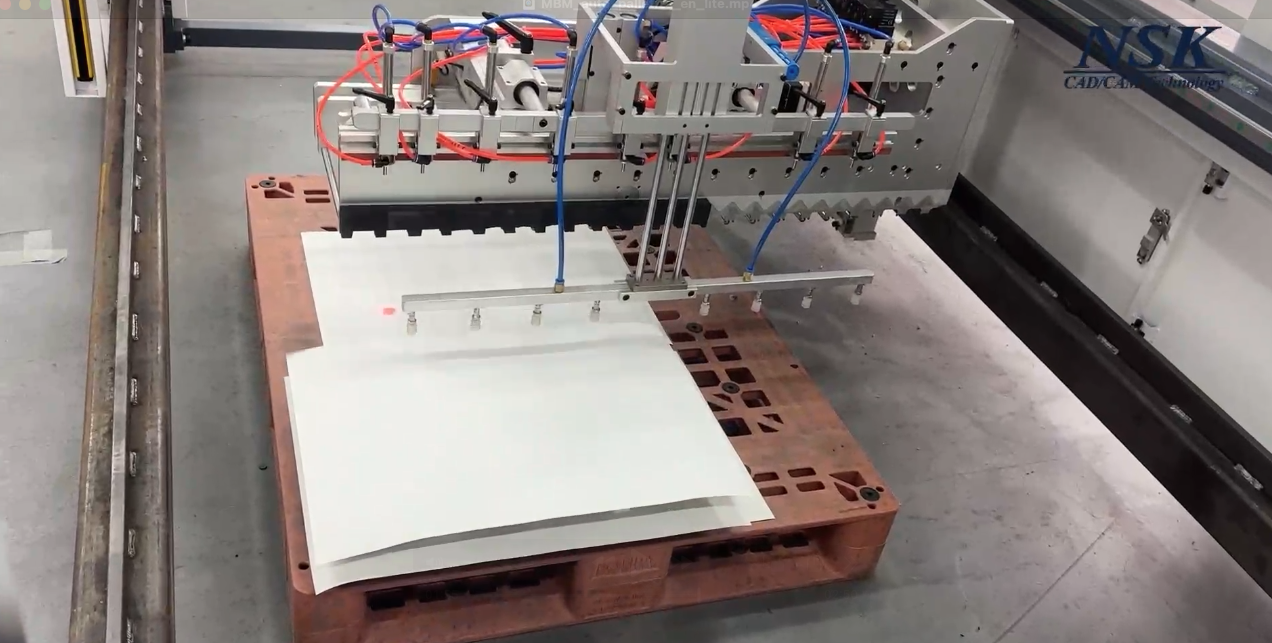

Setting the interleaf sheets
Sheets to prevent
collapse can also be automatically inserted.
Automatic Palletizing System Movie
Multi Blanking Machine
MBM
MBM New Customization Option

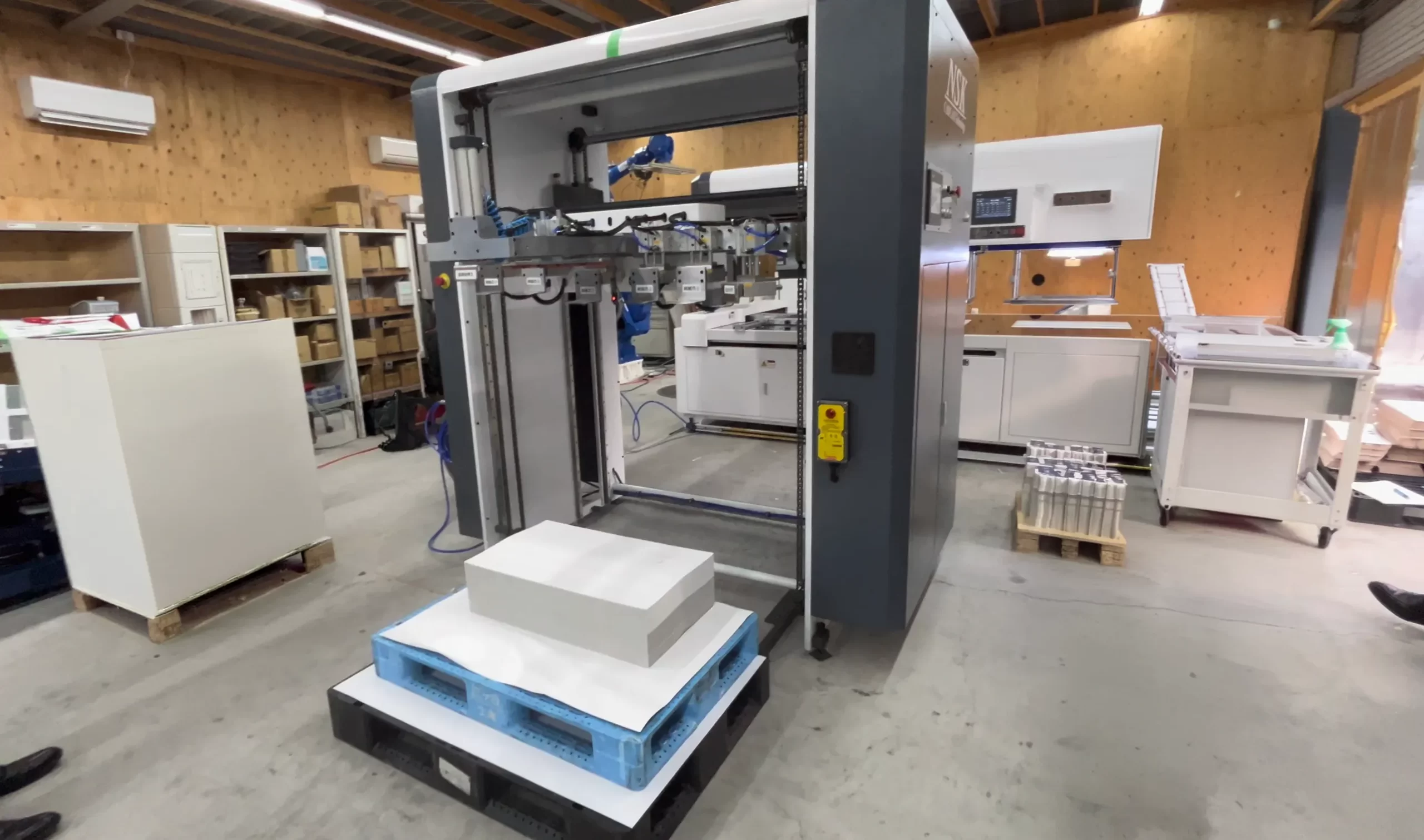

Automatic Feed Option
An option supporting material supply to MBM.
Picks and transports the ideal amount of palletized materials.
Improving the operator’s environment
Starts with a simple push of a button.
Reduces the physical strain of blanking tasks.
Delivers materials to workbench height for better ergonomics and efficiency.
Improving the operator’s environment
Starts with a simple push of a button.
Reduces the physical strain of blanking tasks.
Delivers materials to workbench height for better ergonomics and efficiency.

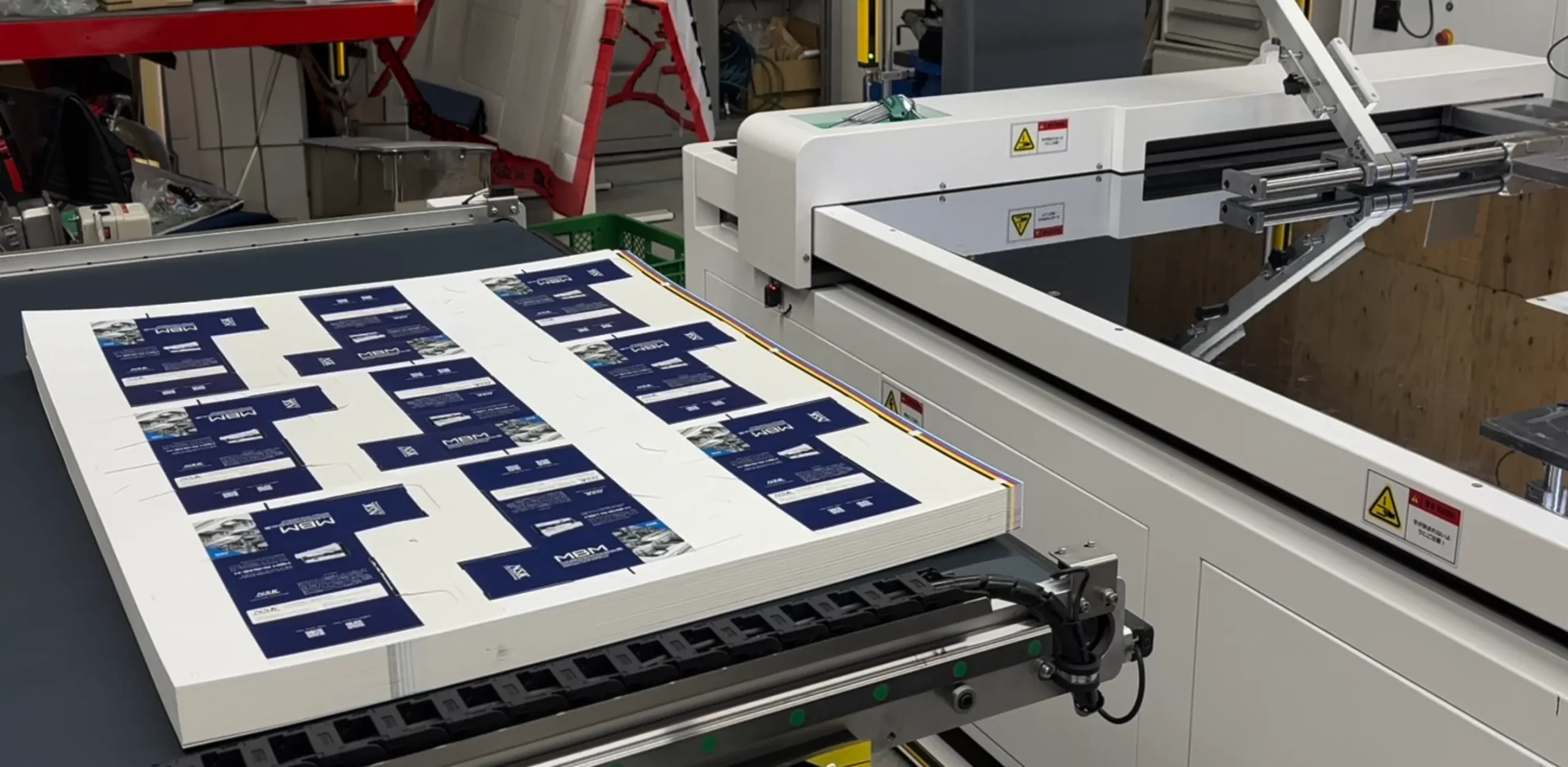

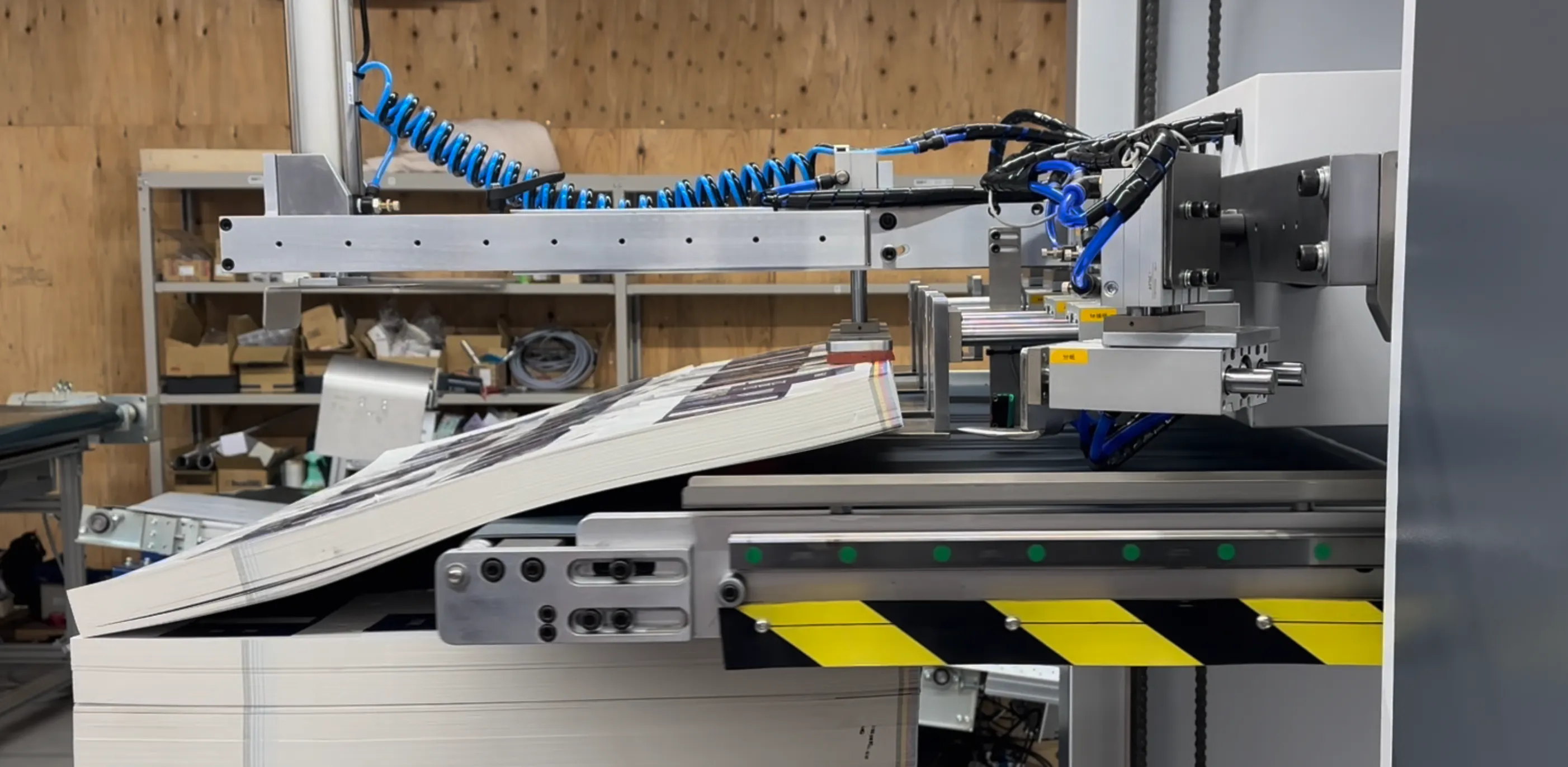

Automated precise feeding
This option enables unmanned operation while transporting precise quantities to the MBM with zero shifting, ensuring perfectly stable loading.
Safety design
Equipped with safety sensors, the system stops immediately if a person is detected in its path. It is engineered with operator safety as the top priority.

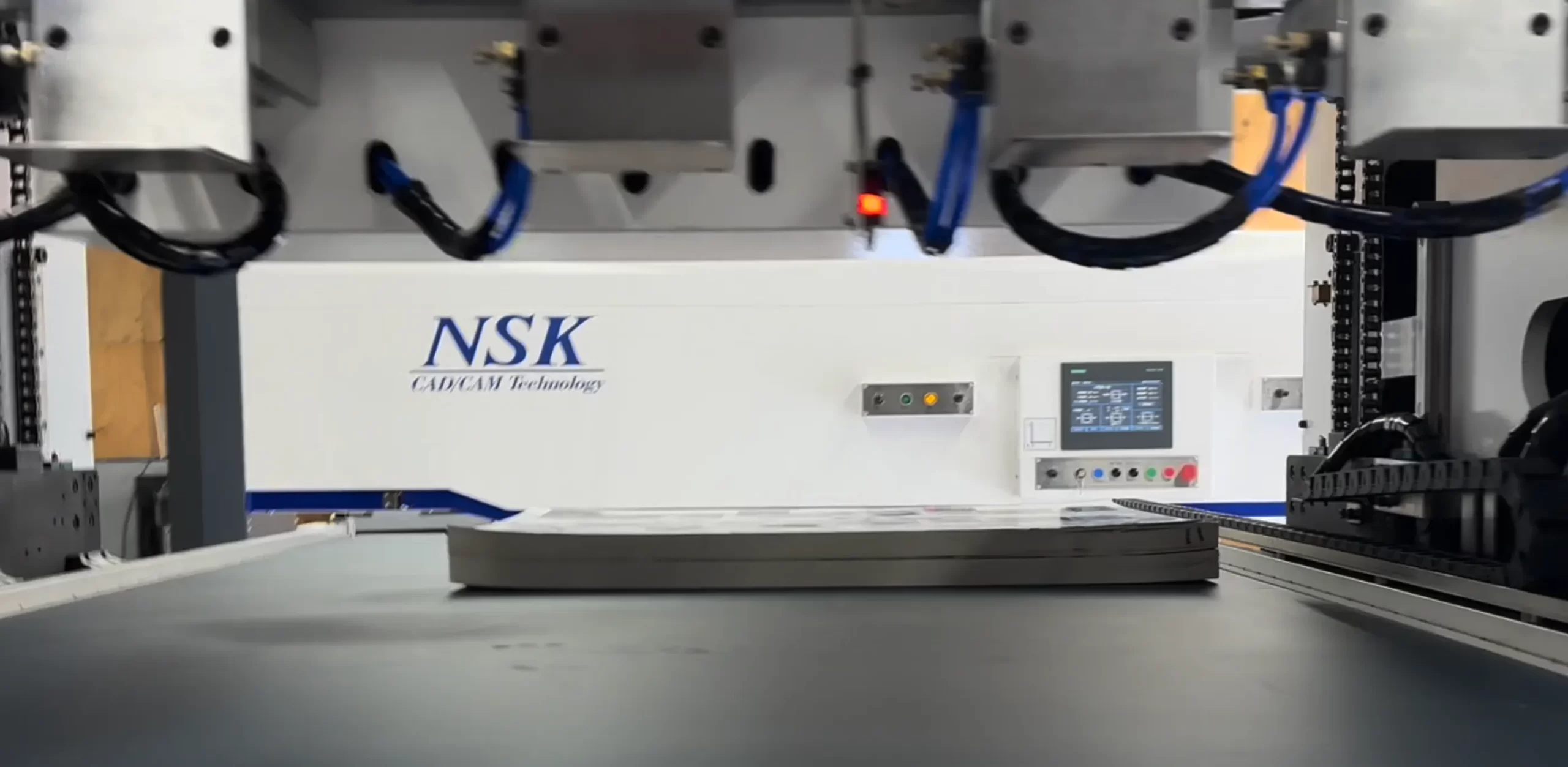

Customization for Any Size
The unit size is fully customizable, allowing for flexible width and height designs to match the specific dimensions of your materials.
Automatic Feed Option Movie
Multi Blanking Machine
MBM
MBM Lineup

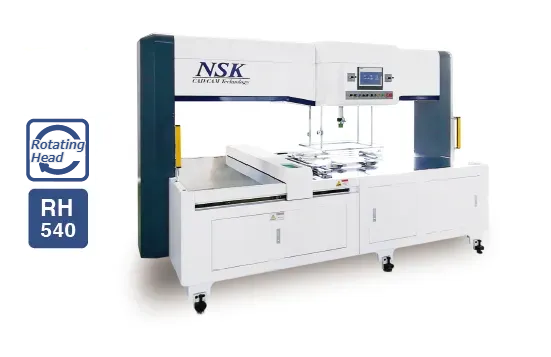

MBM RH540/540H
By Rotating the frame and pin insetion mechanism by 90 or 180 degrees, It is possible to accomodate impositions and nesting in the space of a single-head machine to save valuable space on the factory floor.
MBM SH540
A single-head model for blanking straight-type, fixture-free designs. The machine is easy to operate.
※SH540/TH540
Max Blanking Size(mm)：540×410
Max Sheet Size(mm)：1100×800
MBM TH540
A twin-head model suited for blanking designs with nesting and fixtures, and for designs needing setups with different patterns. Its strong point is its flexibility to accommodate various types of designs.
